Deep Groove Ball Bearings

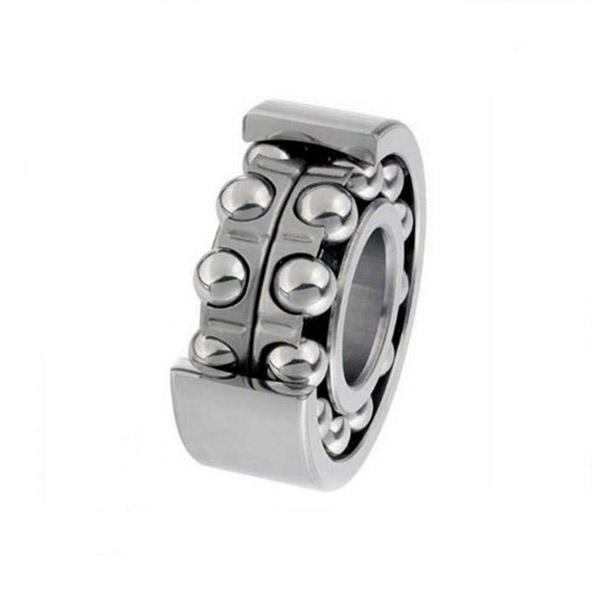

Double row deep groove ball bearings correspond in design to single row deep groove ball bearings. They have uninterrupted deep raceways and a high degree of consistency between the balls and the raceways. They are able to withstand radial loads as well as axial loads acting in both directions. Double row deep groove ball bearings are ideally suited to bearing arrangements where the load carrying capacity of single row bearings is insufficient. For the same bore and outside diameter, double row bearings are slightly wider than single row bearings in the 62 and 63 series, but have a much higher load carrying capacity. Double row deep groove ball bearings can only be used as open bearings (without seals or shields). Translated with www.DeepL.com/Translator (free version)
Introduction
The versatility offered by Deep Groove Ball Bearings makes them most popular of all Bearing types. They are simple in design. Deep Groove Ball Bearings are available ina wide range, as defined by
Deep Groove Ball Bearings are
capable of carrying load in either direction, with relatively higher radial load carrying capacity
suitable for low or medium load applications
suitable for low, medium or even high speed applications; depending on the type 8t precision ofselected Bearing
well suited for applications that require high running accuracy
suitable for low noise and low torque applications
can offer following variants
Single and Double Row type
open basic design typeas Sealed types
with Snap Ring groove
with Snap Ring groove and Snap Ring
with C2, CN, C3, C4 8t C5 radial clearancestandard precision grade (lS0 Grade 0 - ABEC1) 8t higher precision grade (lS0 Grade 1 - ABEC3)with extended Inner Ringpressed Steel, riveted, Plastic and machined Brass Cage
